home > Product introduction >Powder packaging machine

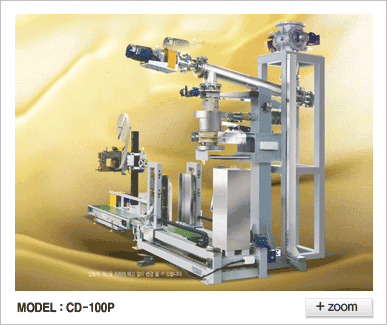

>Automatic weighing packaging machine for fine powder






-The structure suitable to the work of packing
  he fixed quantity of a fine product
- Packing the discharge gate in the completely
  closed state (the inflation type INFLATION GRIP)
- Maintaining the optimal work environment by
  minimizing the dust dissemination
- Convenient maintenance and worker’s
  operation due to the compact design
- Possible to apply various supply devices
  according to product characteristics
- The structure useful for space utilization in the
  small workplace
- Possible to selectively order explosion proof or
  non-explosion proof depending on the site
  conditions
  - Packing the powder including pigment and dye
- Packing fine chemicals
- Packing synthetic resins and organic fertilizers
- Packing other powder chemicals






- GROSS PACKER SCALE
- Automatic ROBOT stocking facility
- 1~20L CAN filling facility
- NET PACKER SCALE
- The automatic pallet feeding and banding
  system
- 60~200L drum filling facility
- Tone BAG packing facility
- The full automatic liquid filling facility
- Automatic toning system (painting system)


  - Weighing range : 5~30kg
- Weighing accuracy : ±1/500~1/1000
- Packing speed : 60~200 Bag/hr
  (depending on the physical property)
- Product Feeding System : Screw feeder,
  Cut-gate,
..Vibration feeder,Belt feeder type
- Explosion-proof type available
- Power : 220V/380VAC, 50/60HZ, 6KVA
- Air Pressure : 4~7kg/㎤, 70~100Nℓ/min
- OPTION
..＊Sewing or Sealing machine
..＊Bag feeding system
..＊Automatic robot stocking facility
