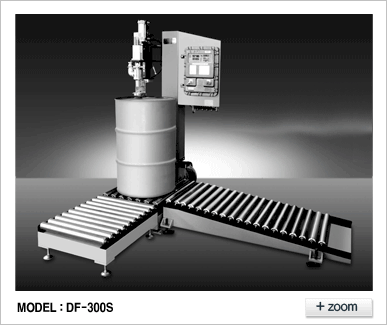

home > Product introduction >200L drum filling >Semi-automatic drum filling machine






- Possible to change the set of the filling quantity
  freely
- Possible precise 2-shift filling and possible to
  precisely adjust the 2nd shift filling flow quantity
- Automatically removing the container weight
- Mounting the drip tray
- Accumulating, displaying, and deleting the
  number of filled drums and the total of filling
- Sold and stable frame
- Possible to select the explosion proof and
  non-explosion proof variously
- Possible long nozzle valve for liquid generating
  bubbles
- It is the system to operate upward and
  downward and swing the valve and is used for
  the drums with various dimensions.

  - Oil
- Solvent such as thinner
- Liquid sugar
- Cooking oil and resin
- Resin
- Food and beverage such as soy sauce
- Paint and varnish
- Other liquid chemicals





- Automatic 18L can filling system
- 4L small can filling system
- Empty can feeding system
- Semi-automatic drum filling system
- Capper
- Depalletizer
- Semi-automatic pail can filling system
- Palletizer (automatic and semi-automatic)
- Labeler



  - Filling Capacity : 50~300kg
- Filling Accuracy : 1/500~1/1000
- Filling Speed : 25~40 Drum/hr
- Air Pressure : 4~7kg/cm2, 30N l/min
- Filling Valve:·
.*Inlet 2B
.*Nozzle ..35
.*Material:SUS304, Teflon
- Filling Pressure:0.1~2.0kg/cm2
- Power:AC 220V, 50/60Hz, 10A
- Option:
.*ExdⅡBT5(explosion proof)
.*Long Nozzle
