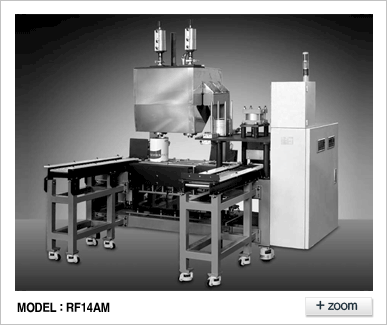

home > Product introduction > 1~20L can filling> 2-section round type can filling machine
- The facility automating the filling of various 1L, 2L, and 4L round cans
- Maximizing the work efficiency with the capper integrated
- Easily cleaning the whole hopper and responding to the product change
- One operator can fully operate it with the empty can entry assisting conveyor.
- Easy to use the filtering device such as the filter net in the upper end of the hopper
- Possible explosion proof structure and the cover and hood function in preparation for voc
- The economical model with the low installation cost
- Filling the 1l, 2l, and 4l round cans
- Hardener, oil paint, and water paint
- Paint for ships and other highly viscous special paint
- Filling other liquid cans
- Automatic filling lines for various cans
- Metallic and plastic pail can filling system
- Automatic cap feeding and fastening system (capper)
- Semi-automatic filling system for various cans
- Automatic empty can stocking and feeding system
- The pallet feeding system and the pallet banding system
- Automatic and semi-automatic drum filling system
- Can and drum palletizer
- Automatic toning system (dosing system)
- Filling Capacity : 1~10kg
- Filling Accuracy : 1/500 ~ 1/1000
- Filling Speed : 300 ~ 360cans/hr
- Hopper Size : 120l or more
- Over Flow Alarm : Exi close sensor alarm
- Filling Nozzle ..＊Number of Nozzles :2units ..＊Material : SUS304 ..＊units : 2shift precision control
- Air Pressure : 4~7kg /cm2
- Power : AC220 50/60Hz, 5A
- Capping M/C : PRESS TYPE
- Option ..＊Ink jet printer ..＊Labeller
