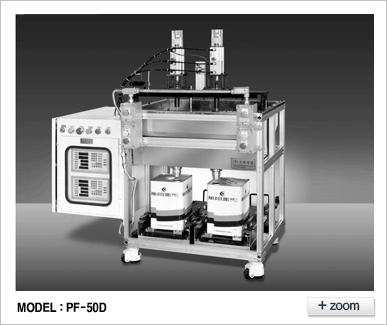

home > Product introduction > 1~20L can filling> 2-section portable liquid filling machine






- The height from the ground of the machine is
  low so that it is suitable to the site with a low
  storage tank.
- It is the simple portable type that can be used
  easily.
- It is the completely open type that can be
  cleaned easily. It is possible to attach the hood
  for restricting evaporation.
- It is the all-in-one- hopper type with which it is
  easy to use the filter net.
- The explosion proof structure is possible in the
  dangerous area.
- It implements the high performance with the
  low price.




- Paint and solvent
- Liquid food such as soy sauce and salted fish
- Dye
- Filling other kinds of liquid






- The automatic and semi-automatic 18L can
   filling system
- The 1,2, and 4L can filling system
- The automatic empty can feeding system
- The drum filling system/ the semi-automatic
   filling system
- The automatic capper
- Depalletizer
- The pail can filling system
- Palletizer/ pallet magazine
- Labeler and inkjet printer


  - Filling Capacity : 1~50㎏
- Filling Accuracy : 1/500~1/1000
- Filling Speed : 90~150 can/hr
- Hopper Size : 120Lor more
- Over Flow : Close sensor / alarm
- Filling Nozzle
..
*Number of Nozzles:2units
..*Material:SUS304
..*more -Control:2shift precision control
- Air Pressure : 4~7㎏/㎠
- Power : AC220V 50/60㎐, 5A
- Option
..*Exp positive pressure explosion proof
..*Exi substantial safety explosion proof
