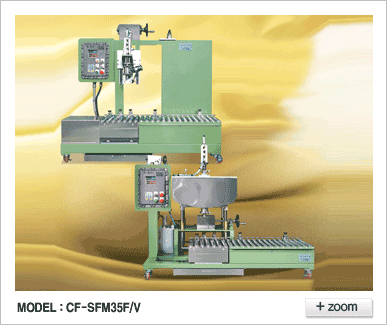

home > Product introduction > 1~20L can filling>Semi auto can / pail filler
- Filling the fixed quantity of liquid at the bottom of the storage bath
- Directly filling the filler with the pump control (the filling valve type)
- Easy work with the simple movement in the small workplace
- Possible to easily manipulate it due to the simple operating instructions
- Easy to clean it after usage and with the small quantity of cleanser
- Little failure due to the simple structure
- Possible to make a selective order of two nozzles depending on the production quantity
- Possible to make a selective order of an explosion proof item or a non-explosion proof item depending on the site conditions
- Filling the 4~10L small cans
- Filling each 18L can / 20L PAIL
- Filling various containers such as P.E BOTTLE
- The extra facility of the full automatic filling facility
- automatic filling line of various cans
- The semi-automatic filling system of various cans
- The automatic and semi-automatic drum filling systems
- The metallic and plastic pail can filling system
- The automatic empty cans storage and feeding system
- The automatic division packing and stocking system
- The automatic cap feeding and fastening system (capper)
- Pallet feeder and the pallet banding system
- The automatic toning system (painting system)
- Filling range : 5kg~50kg
- Filling accuracy : 1/500~1/1000
- Filling speed : 100~150 can/hr (in linkage with the flow quantity)
- Up/down range : 100~400mm (H))
- Explosion-proof type available
- Power : 220V/380VAC, 50/60HZ, 1KVA
- Air Pressure : 4~7kg/㎤, 50Nℓ/min
- OPTION ..＊Hopper type,Filling valve type ..＊1 or 2 filling head
