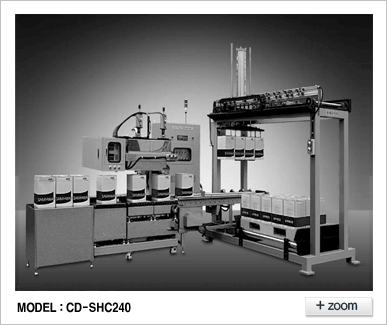

home > Product introduction > 1~20L can filling>Automatic 18L can filling and stocking system






- Automation of filling the can with the fixed
  quantity and of palletization at a time
- The hopper is mounted so that the stable filling
  is realized by the natural pressure.
- Only one person can possibly do the filling and
  pallet work without difficulties.
- Designed for easy cleaning and easy to
  respond to the product change
- Possible to install it in the small area and easy
  to move and install it
- Easy to use and maintain it with the precise
  2 shift filling structure
- No can damage during palletization with the
  vacuum absorption
  - Filling and taking out the paint and resin
- Filling the starch syrup and cooking oil
- Filling with the product frequently changed
- Filling in the narrow installation place by the
  minimal number of staffs





- The automatic filling line of various cans
- The semi-automatic filling system of various
  cans
- The automatic and semi-automatic drum filling
  systems
- The metallic and plastic pail can filling system
- The automatic empty cans storage and
  feeding system
- Can and drum palletizer
- The automatic cap feeding and fastening
  system (capper)
- Pallet feeder and the pallet banding system
- The automatic toning system (painting system)


- Filling Capacity : 5~40Kg
- Filling Accuracy : 1/500~1/1000
- Filling Speed : 200~300cans/hr
- Hopper size : 120ℓ or above
- Over Flow Alarm : Exi Close sensor alarm
- Filling Nozzle
.＊Number of Nozzles : 2units
.＊Material : SUS304
.＊Control Type : 2shift precision control
- Air Pressure : 4~7㎏/㎠
- Power:AC220 50/60Hz, 5A
- Palletizer :Vacuum pad type
- Option
.＊Capping machine
.＊Labeller, Ink jet printer
